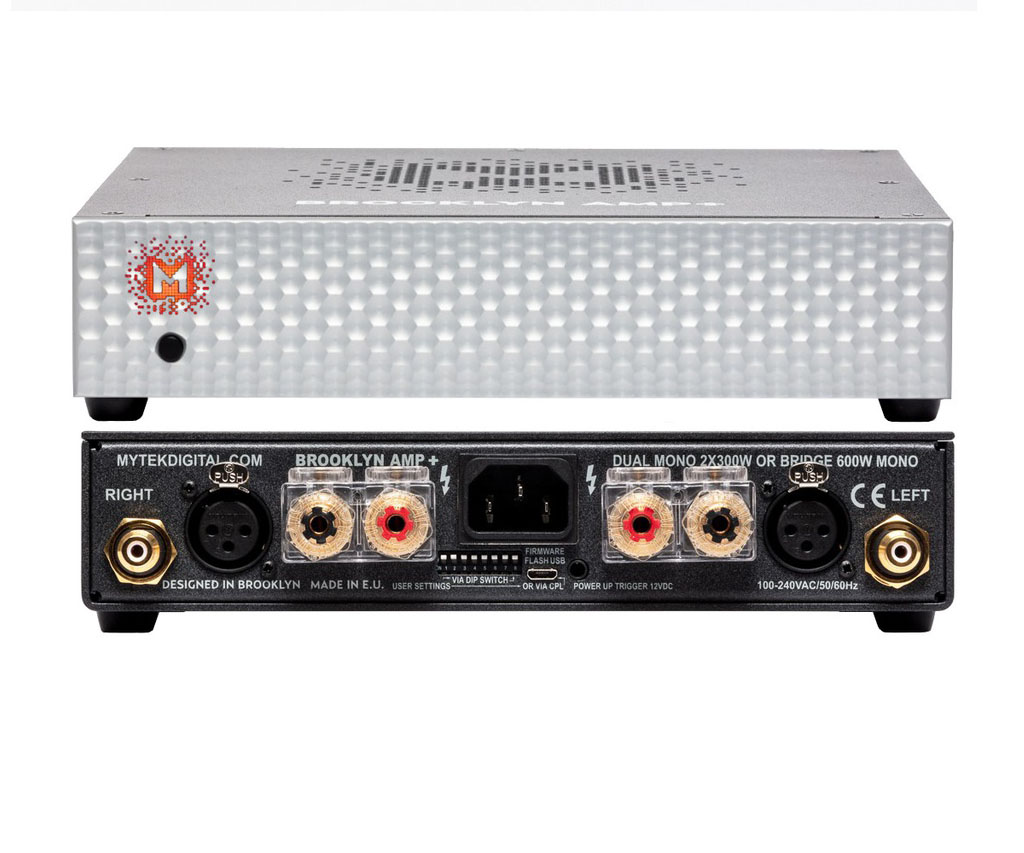

BROOKLYN AMP+
COMPACT • HI-RES • DUAL MONO POWER AMPLIFIER
Experience the triode analog like quality of this compact powerful newest generation Class D amplifier from Mytek: Fast 650kHz clock extends bandwith, while fast FET transistors retain the low level detail and soundstage.
Amplifier is packaged in miniature 1/2 rack enclosure and it’s small enough to fit in a briefcase, yet powerful to drive the largest speaker systems. It’s designed to be used as regular stand-alone power amplifier or to complement Brooklyn Bridge for complete modern digital streaming and vinyl playback system. Two Brooklyn Amps work great in a monoblock setup in a bridge mode capable of driving very large speakers with 600W of power.
SPECS
POWER RATINGS AT 1% THD:
at 8 Ohm - dual mono 2 x 250 W
at 4 Ohm - dual mono 2 x 300 W
Peak - dual mono 2 x 1200 WBRIDGE MONO
8 Ohm / 500W 4 Ohm / 600W
OUTPUT SWING
57 Vp / 114 Vpp (unloaded)
SNR
>121 dB
FREQUENCY RESPONSE
-3dB: 10Hz - 30kHz
THD REGULAR USE
<0.001%
PROTECTION CIRCUITRY
Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
-
DAMPING FACTOR
>400
-
DC POWER ON TRIGGER
12VDC minijack
-
WORLDWIDE POWER SUPPLY
100-240VAC 50/60 Hz
-
DIMENSIONS
WxDxH=8.5x8.8x1.74”=216x225x44mm
-
WEIGHT
6lbs, 3kg
-
WARRANTY
2 years
ORDER NOW
DESIGNED IN NEW YORK
