Brooklyn Bridge II ROON CORE
BACKORDERED (ETA. 4 WEEKS - updated Sept 18, 2023). Because of the demand for BBridge higher than our current production output, the backorder situation is expected to continue until the Fall.
1Category:
- 30-day money-back
- 30-day returns
Brooklyn AMP+, one of the best sounding class D amps can be added to create cosmetically matching hifi set at a reduced combo price

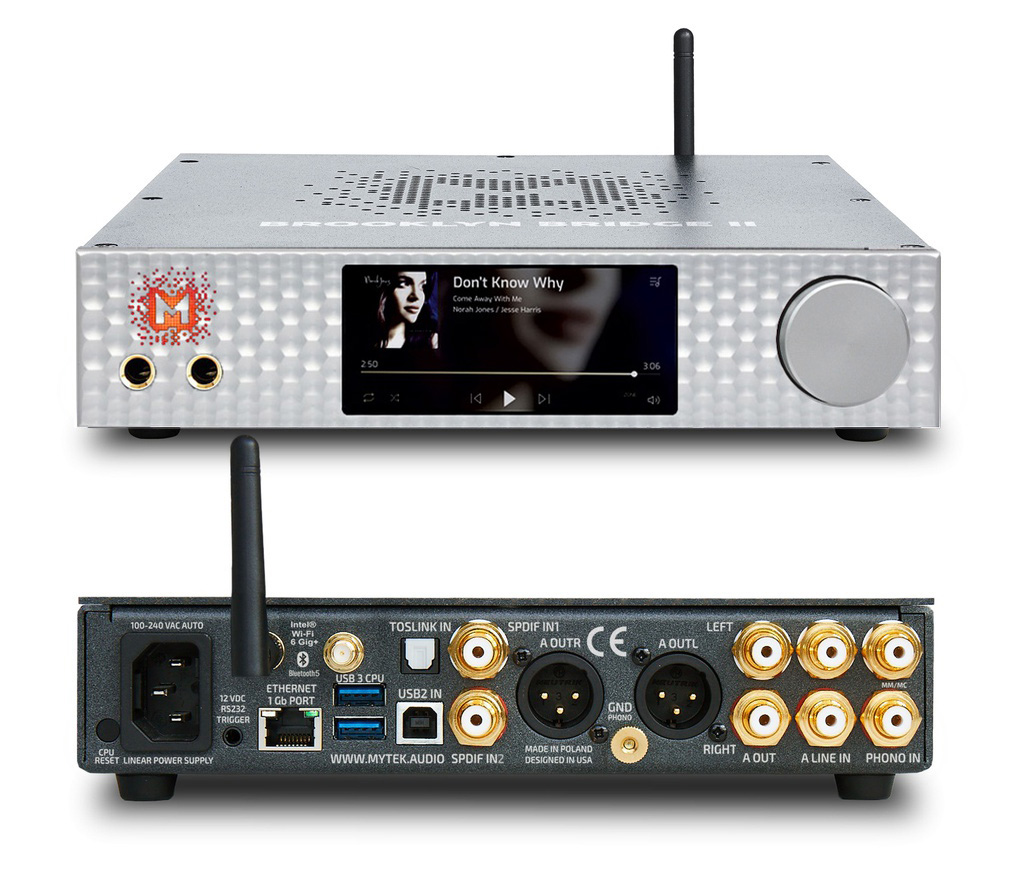

BROOKLYN BRIDGE II ROON CORE
ALL-IN-ONE • ROON CORE STREAMER • DAC • HEADPHONE • PHONO• PREAMP
Brooklyn Bridge II (BB2) is a major redesign of our best selling original Brooklyn Bridge (BB1) . The BB2 now officially has a built in Roon Core computer combined with Mytek OS for easy touch screen operation from an ipad, smart phone or front panel screen. BB2 is a complete all in one Roon system and designed to be used primarily with Roon playback software. In addition it will provide similar functionality to the original Brooklyn Bridge (Upnp and Roon End Point) and more (Bluetooth, DSP etc). You can think of BB1 functionality being a subset of BB2. BB2 has the functionality of BB1 plus Roon Core computer, touch screen, toroidal linear power supply. Because the computer will be continuously updated over the life of the product, a lot of new functionality will be added, including new streaming and DSP options, file management etc., which are not possible nor intended for the BB1. The DAC and analog section is the same in both products, but because BB2 has the linear regulated power supply, it subjectively sounds about 20% better than the BB1.
Using Roon with BB2 requires Roon subscription. Roon provides superior playback and browsing experience, especially with metadata (lyrics, credits, just like a vinyl album covers), not available with other playback software and preferred by thousands of music lovers. Roon also provides more options such as advanced playlist management, multiroom playback and ARC which turns your local library into your own, private streaming service. Roon will play any format including DSD256 and 384k PCM, while other software is limited to max PCM 192k
If you don't want use Roon, nor Bluetooth and upgradable future functionality, and are happy with standard Tidal or Spotify playback interface which uses Upnp for simple playback, you should consider instead buying the Brooklyn Bridge Original (click here) .
BUILT IN ROON CORE I5 Intel CPU - POWERED BY ROON OS: Brooklyn Bridge has all functionality of a Roon Core CPU combined with high performance DAC. Roon Software can be operated from Roon Remote App or from Mytek Web Interface from any device connected to the network. Bridge can function as a multiroom playback machine playing to different Roon end points.
SPECS
Brooklyn Bridge 2 is all in-one Roon Core Streamer + excellent DSD/MQA DAC+ Analog (w/Phono) and Digital Preamp and a high-end headphone amplifier in a compact, modern beautiful chassis. It connects all your music sources in a highest sound quality hub before sending the music to amp and speakers or headphones. It's powered by modern touch operated software - Roon for music browsing and streaming and Mytek OS for all other functionality. Software controls available on front panel are repeated on a wifi device: tablet or smartphone for comfort and convenience.
Music Sources:
Built in Roon Core: Tidal, Qobuz and local library in any format up to PCM 384kHz, DSD256 and MQA
Analog Preamp: Phono M/C and M/M and line RCA input
Digital Preamp: SPDIF and Optical inputs for disk players, or TV,
Roon Ready DAC input for use w another streamer when required
Bluetooth 5: including hi-res audio (quality depends on cellphone) - For quick casual listening to any internet sound/music source.
Future Functions: Mytek OS is a software platform that is continuously expanded with new functionality added. Software upgrade happens the same way as on any computer: upon "new software" notification user can choose to download and update the system. New software contains new features and fixes. Within the next months and years, Mytek plans to add alternative players such as Spotify and Tidal Connect and features like Apple Airplay etc. Their availability will be announced when software work on them begins. Future Functions: Mytek OS is a software platform that is continuously expanded with new functionality added. Software upgrade happens the same way as on any computer: upon "new software" notification user can choose to download and update the system. New software contains new features and fixes. Within the next months and years, Mytek plans to add alternative players such as Spotify and Tidal Connect and features like Apple Airplay etc. Their availability will be announced when software work on them begins.
Inside the shipping box: power cord for country of destination, usb 2.0 cable, code for 2 months of FREE Roon subscription. Current manual is available as a pdf download on this page.
CONVERSIONup to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB DR, ES9028PRO chipset with superior Mytek implementation (HAT (tm) Harmonic Audio Tuning)
MQA HI-RES DECODER
DECODER: built in hardware MQA decoder, full unfold to original sample rate
DIGITAL DAC INPUTS
USB2 Class2 (OSX, Linux driverless, all formats up to 384k, DSD256), 2x S/PDIF, 1 Toslink optical (PCM up to 24/192k, up to DSD64 DOP, MQA)
ADDITIONAL DIGITAL INPUTS
Bluetooth 5 and Roon Ready Network Endpoint DAC input- PCM384k, DSD256, MQA.
ANALOG PREAMP INPUTS
Line level input (10k input impedance) or Phono M/M, M/C input, relay controlled. All analog signal path to output.
2xUSB3/2 connectors
Can be used for:
1) Any music files on FAT /NTFS / Exfat drive or USB Stick. SSD is recommended because of 1A current limit)
2) additional USB DACs for additional Roon Zones (2pcs or up to several can be connected if USB hub is used)
ANALOG OUTPUTS
RCA, balanced XLR, simultaneous, 10 Ohm output impedance
CLOCK
Mytek Femtoclock Generator(tm) 0.82ps internal jitter
HEADPHONE OUTPUTS
Reference High Current, High transient Headphone Amp, 500mA, 6 Watts, dual headphone jacks, designed to drive hard to drive headphones. Balanced operation with a 1/4" to 4 pin XLR adapter
VOLUME ATTENUATOR
Choice of 1dB step analog attenuator, or 1dB step digital 32 bit attenuator and purist relay bypass.
INTERNAL STORAGE
Internal storage is part of the system SSD on the main CPU board and it is fixed and not user upgradable. There are two models of BB2: basic 64GB (approx 10 CDs) and 4TB (approx 625 CDs). Internal storage is accessed by the user as a network drive. Upgrade to 4TB requires service by Mytek.
POWER SUPPLY90W Toroidal Linear Power Supply powers the DAC and the Intel I5 CPU from separate windings. Auto voltage detection adjusts to the local line voltage (90-240VAC 50/60Hz)
WEIGHT
6lbs, 3kg
WARRANTY
2 years
DIMENSIONS
WxDxH=8.5x8.8x1.74”=216x225x44mm
WEIGHT
6lbs, 3kg
WARRANTY
2 years
Availability (updated on May 26, 2023)
Brooklyn Bridge II is being now manufactured and have started shipments to preorder dealers and customers. The products are trickling from our factory in Poland, initially at slow pace, as the production ramps up. Preorders will have shipping priority and will be shipped on first come first served basis. If you have already placed a preorder with Mytek, you will be receiving an individual email with detailed information on the shipment when is ready. Because of the production being ramped up, we expect the fulfillment process for preorders to last several weeks. New orders are currently backordered for 6 weeks.
Upgrade path for the Brooklyn Bridge I (original) released in 2018:
Mytek has now extended an upgrade offer to current Brooklyn Bridge original owners: Brooklyn Bridge (original) can be traded towards a brand new Brooklyn Bridge II when it becomes available by requesting the upgrade directly with Mytek Audio on this upgrade page:
https://mytek.audio/shop/brooklyn-bridge-to-brooklyn-bridge-ii-upgrade-437#attr=
DESIGNED IN NEW YORK
Brooklyn AMP+, one of the best sounding class D amps can be added to create cosmetically matching hifi set at a reduced combo price
BROOKLYN BRIDGE II ROON CORE
ALL-IN-ONE • ROON CORE STREAMER • DAC • HEADPHONE • PHONO• PREAMP
Brooklyn Bridge II (BB2) is a major redesign of our best selling original Brooklyn Bridge (BB1) . The BB2 now officially has a built in Roon Core computer combined with Mytek OS for easy touch screen operation from an ipad, smart phone or front panel screen. BB2 is a complete all in one Roon system and designed to be used primarily with Roon playback software. In addition it will provide similar functionality to the original Brooklyn Bridge (Upnp and Roon End Point) and more (Bluetooth, DSP etc). You can think of BB1 functionality being a subset of BB2. BB2 has the functionality of BB1 plus Roon Core computer, touch screen, toroidal linear power supply. Because the computer will be continuously updated over the life of the product, a lot of new functionality will be added, including new streaming and DSP options, file management etc., which are not possible nor intended for the BB1. The DAC and analog section is the same in both products, but because BB2 has the linear regulated power supply, it subjectively sounds about 20% better than the BB1.
Using Roon with BB2 requires Roon subscription. Roon provides superior playback and browsing experience, especially with metadata (lyrics, credits, just like a vinyl album covers), not available with other playback software and preferred by thousands of music lovers. Roon also provides more options such as advanced playlist management, multiroom playback and ARC which turns your local library into your own, private streaming service. Roon will play any format including DSD256 and 384k PCM, while other software is limited to max PCM 192k
If you don't want use Roon, nor Bluetooth and upgradable future functionality, and are happy with standard Tidal or Spotify playback interface which uses Upnp for simple playback, you should consider instead buying the Brooklyn Bridge Original (click here) .
BUILT IN ROON CORE I5 Intel CPU - POWERED BY ROON OS: Brooklyn Bridge has all functionality of a Roon Core CPU combined with high performance DAC. Roon Software can be operated from Roon Remote App or from Mytek Web Interface from any device connected to the network. Bridge can function as a multiroom playback machine playing to different Roon end points.
SPECS
Brooklyn Bridge 2 is all in-one Roon Core Streamer + excellent DSD/MQA DAC+ Analog (w/Phono) and Digital Preamp and a high-end headphone amplifier in a compact, modern beautiful chassis. It connects all your music sources in a highest sound quality hub before sending the music to amp and speakers or headphones. It's powered by modern touch operated software - Roon for music browsing and streaming and Mytek OS for all other functionality. Software controls available on front panel are repeated on a wifi device: tablet or smartphone for comfort and convenience.
Music Sources:
Built in Roon Core: Tidal, Qobuz and local library in any format up to PCM 384kHz, DSD256 and MQA
Analog Preamp: Phono M/C and M/M and line RCA input
Digital Preamp: SPDIF and Optical inputs for disk players, or TV,
Roon Ready DAC input for use w another streamer when required
Bluetooth 5: including hi-res audio (quality depends on cellphone) - For quick casual listening to any internet sound/music source.
Future Functions: Mytek OS is a software platform that is continuously expanded with new functionality added. Software upgrade happens the same way as on any computer: upon "new software" notification user can choose to download and update the system. New software contains new features and fixes. Within the next months and years, Mytek plans to add alternative players such as Spotify and Tidal Connect and features like Apple Airplay etc. Their availability will be announced when software work on them begins. Future Functions: Mytek OS is a software platform that is continuously expanded with new functionality added. Software upgrade happens the same way as on any computer: upon "new software" notification user can choose to download and update the system. New software contains new features and fixes. Within the next months and years, Mytek plans to add alternative players such as Spotify and Tidal Connect and features like Apple Airplay etc. Their availability will be announced when software work on them begins.
Inside the shipping box: power cord for country of destination, usb 2.0 cable, code for 2 months of FREE Roon subscription. Current manual is available as a pdf download on this page.
CONVERSIONup to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB DR, ES9028PRO chipset with superior Mytek implementation (HAT (tm) Harmonic Audio Tuning)
MQA HI-RES DECODER
DECODER: built in hardware MQA decoder, full unfold to original sample rate
DIGITAL DAC INPUTS
USB2 Class2 (OSX, Linux driverless, all formats up to 384k, DSD256), 2x S/PDIF, 1 Toslink optical (PCM up to 24/192k, up to DSD64 DOP, MQA)
ADDITIONAL DIGITAL INPUTS
Bluetooth 5 and Roon Ready Network Endpoint DAC input- PCM384k, DSD256, MQA.
ANALOG PREAMP INPUTS
Line level input (10k input impedance) or Phono M/M, M/C input, relay controlled. All analog signal path to output.
2xUSB3/2 connectors
Can be used for:
1) Any music files on FAT /NTFS / Exfat drive or USB Stick. SSD is recommended because of 1A current limit)
2) additional USB DACs for additional Roon Zones (2pcs or up to several can be connected if USB hub is used)
ANALOG OUTPUTS
RCA, balanced XLR, simultaneous, 10 Ohm output impedance
CLOCK
Mytek Femtoclock Generator(tm) 0.82ps internal jitter
HEADPHONE OUTPUTS
Reference High Current, High transient Headphone Amp, 500mA, 6 Watts, dual headphone jacks, designed to drive hard to drive headphones. Balanced operation with a 1/4" to 4 pin XLR adapter
VOLUME ATTENUATOR
Choice of 1dB step analog attenuator, or 1dB step digital 32 bit attenuator and purist relay bypass.
INTERNAL STORAGE
Internal storage is part of the system SSD on the main CPU board and it is fixed and not user upgradable. There are two models of BB2: basic 64GB (approx 10 CDs) and 4TB (approx 625 CDs). Internal storage is accessed by the user as a network drive. Upgrade to 4TB requires service by Mytek.
POWER SUPPLY90W Toroidal Linear Power Supply powers the DAC and the Intel I5 CPU from separate windings. Auto voltage detection adjusts to the local line voltage (90-240VAC 50/60Hz)
WEIGHT
6lbs, 3kg
WARRANTY
2 years
DIMENSIONS
WxDxH=8.5x8.8x1.74”=216x225x44mm
WEIGHT
6lbs, 3kg
WARRANTY
2 years
Availability (updated on May 26, 2023)
Brooklyn Bridge II is being now manufactured and have started shipments to preorder dealers and customers. The products are trickling from our factory in Poland, initially at slow pace, as the production ramps up. Preorders will have shipping priority and will be shipped on first come first served basis. If you have already placed a preorder with Mytek, you will be receiving an individual email with detailed information on the shipment when is ready. Because of the production being ramped up, we expect the fulfillment process for preorders to last several weeks. New orders are currently backordered for 6 weeks.
Upgrade path for the Brooklyn Bridge I (original) released in 2018:
Mytek has now extended an upgrade offer to current Brooklyn Bridge original owners: Brooklyn Bridge (original) can be traded towards a brand new Brooklyn Bridge II when it becomes available by requesting the upgrade directly with Mytek Audio on this upgrade page:
https://mytek.audio/shop/brooklyn-bridge-to-brooklyn-bridge-ii-upgrade-437#attr=
DESIGNED IN NEW YORK
Accessories Products

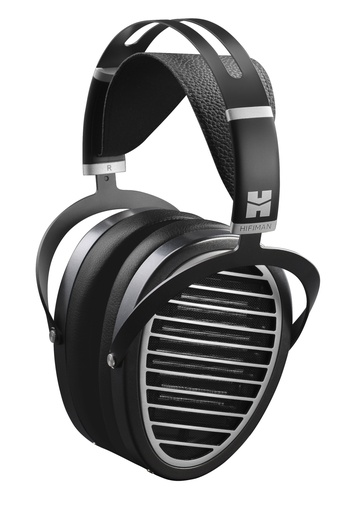

HIFIMAN Ananda Headphones

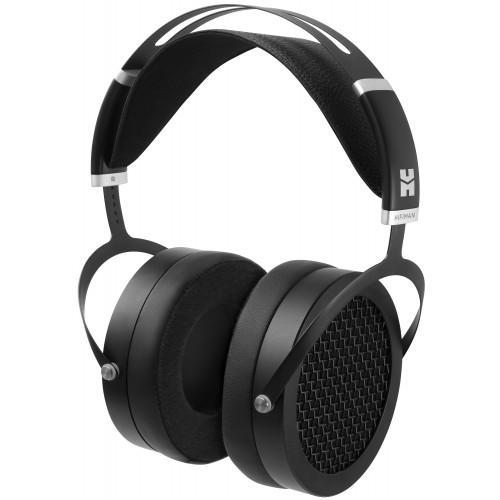

HIFIMAN Sundara Headphones
