CERTIFIED REFURBISHED (Orig. $1995)
Brooklyn DAC is primarily a reference USB2 DAC, but also line and phono analog preamplifier and a reference headphone amplifier. It integrates digital and vinyl hi-res playback for reference listening on headphones and speakers. All integrated functions are of the premium grade. Both phono preamplifier as well as a headphone amplifier are of the highest quality, they challenge dedicated units costing thousands of $$.
Refurbished units are in mint condition, cleaned in and out, tested and measured with screens replaced in necessary. They come with full 2 year warranty.
Brooklyn DAC features the following:
- Sabre 9018 Pro chipset
- Analog or 32 bit digital attenuator circuit.
Plus all the preamp, excellent vinyl phono m/c m/m pre , headphone amp and vivid screen.
Brooklyn DAC a swiss-knife of great analog and digital sound..
SPECIFICATIONS
CONVERSION:
up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 128dB Dynamic Range
MQA HI-RES DECODER
Built in certified hardware MQA™ decoder

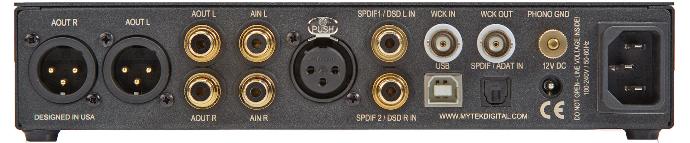

DIGITAL INPUTS:
USB2 Class2 (OSX, Linux driverless, all formats), AES/EBU (PCM up to 192k, up to DSD64 DOP), 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), Toslink/ADAT 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), SDIF3 DSD up to DSD256
-
CLOCK:
“Mytek Femtoclock Generator™” 0.82ps internal jitter, Wordclock Input and Output (allows stacking multiple units for multichannel operation, includes mch DSD)
-
ANALOG OUTPUTS:
RCA, balanced XLR, simultaneous, 50 Ohm impedance
-
HEADPHONE OUTPUTS:
Reference High Current, High transient Headphone Amp, 500mA, 6 Watts, dual headphone jacks, designed to drive hard to drive headphones.
-
BUILT-IN ATTENUATOR:
Choice of 1dB step analog attenuator, separate for main out and head- phones, 1dB step digital 32 bit attenuator and purist relay bypass.
-
BUILT-IN ANALOG PREAMP:
Line level input or Phono M/M, M/C input, relay controlled.
-
AUDIO INTERFACE FUNCTION:
All digital inputs can be routed into computer via USB2. Allows connection of external digital sources such as CD Players and digitizing ADCs.
-
REMOTE:
Included, universal remote capable
-
FIRMWARE:
Upgradable via USB via Mytek Control panel
-
OPTIONAL DC/BATTERY POWER INPUT:
12VDC
-
DIMENSIONS:
WxDxH=8.5x8.5x1.74”=216x216x44mm
-
WEIGHT:
4lbs, 2kg
-
WARRANTY:
2 years
CERTIFIED REFURBISHED (Orig. $1995)
Brooklyn DAC is primarily a reference USB2 DAC, but also line and phono analog preamplifier and a reference headphone amplifier. It integrates digital and vinyl hi-res playback for reference listening on headphones and speakers. All integrated functions are of the premium grade. Both phono preamplifier as well as a headphone amplifier are of the highest quality, they challenge dedicated units costing thousands of $$.
Refurbished units are in mint condition, cleaned in and out, tested and measured with screens replaced in necessary. They come with full 2 year warranty.
Brooklyn DAC features the following:
- Sabre 9018 Pro chipset
- Analog or 32 bit digital attenuator circuit.
Plus all the preamp, excellent vinyl phono m/c m/m pre , headphone amp and vivid screen.
Brooklyn DAC a swiss-knife of great analog and digital sound..
SPECIFICATIONS
CONVERSION:
up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 128dB Dynamic Range
MQA HI-RES DECODER
Built in certified hardware MQA™ decoder
DIGITAL INPUTS:
USB2 Class2 (OSX, Linux driverless, all formats), AES/EBU (PCM up to 192k, up to DSD64 DOP), 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), Toslink/ADAT 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), SDIF3 DSD up to DSD256
-
CLOCK:
“Mytek Femtoclock Generator™” 0.82ps internal jitter, Wordclock Input and Output (allows stacking multiple units for multichannel operation, includes mch DSD)
-
ANALOG OUTPUTS:
RCA, balanced XLR, simultaneous, 50 Ohm impedance
-
HEADPHONE OUTPUTS:
Reference High Current, High transient Headphone Amp, 500mA, 6 Watts, dual headphone jacks, designed to drive hard to drive headphones.
-
BUILT-IN ATTENUATOR:
Choice of 1dB step analog attenuator, separate for main out and head- phones, 1dB step digital 32 bit attenuator and purist relay bypass.
-
BUILT-IN ANALOG PREAMP:
Line level input or Phono M/M, M/C input, relay controlled.
-
AUDIO INTERFACE FUNCTION:
All digital inputs can be routed into computer via USB2. Allows connection of external digital sources such as CD Players and digitizing ADCs.
-
REMOTE:
Included, universal remote capable
-
FIRMWARE:
Upgradable via USB via Mytek Control panel
-
OPTIONAL DC/BATTERY POWER INPUT:
12VDC
-
DIMENSIONS:
WxDxH=8.5x8.5x1.74”=216x216x44mm
-
WEIGHT:
4lbs, 2kg
-
WARRANTY:
2 years
